Accessories: Hose nozzles with clamping jaws
Hose nozzles with clamping jaws and outside thread |
||||
| Dimension | Hose | Thread | Material | Ordering no. |
| ¾” | 19 mm | ¾” NPT | SS | 321.196075.320 |
| 19 mm | R 1” | Ms | 340.195100.130 | |
| 1” | 25 mm | R 1” | Ms | 320.256100.130 |
| 25 mm | R 1” | SS | 320.256100.120 | |
| 1 ¼” | 32 mm | 1” NPT | Ms | 320.326100.310 |
| 32 mm | R 1 ¼” | Ms | 320.326125.130 | |
| 32 mm | R 1 ½” | SS | 320.326150.120 | |
| 32 mm | R 1 ½” | Ms | 320.326150.130 | |
| 1 3/8” | 35 mm | R 1 ½” | Ms | 320.356150.130 |
| 35 mm | R 2” | Ms | 320.356200.130 | |
| 1 ½” | 38 mm | R 1 ½” | Ms | 320.387150.130 |
| 38 mm | R 1 ½” | SS | 320.387150.120 | |
| 38 mm | 1 ½” NPT | Ms | 320.387150.330 | |
| 38 mm | R 2” | Ms | 320.387200.130 | |
| 38 mm | R 2” | SS | 320.387200.120 | |
| DN 40 | 40 mm | R 1 ½” | Ms | 320.407150.130 |
| 40 mm | R 2” | Ms | 320.407200.130 | |
| 2” | 50 mm | R 2” | Ss | 320.508200.120 |
| 50 mm | R 2” | Ms | 320.508200.130 | |
| 50 mm | R 2” | PP | 320.508200.150 | |
| 50 mm | 2” NPT | Ms | 320.508200.310 | |
| 50 mm | R 2 ½” | Ms | 320.508250.130 | |
| 50 mm | R 2 ½” | SS | 320.508250.120 | |
| 2 ½” | 65 mm | R 2 ½” | Ms | 320.657250.130 |
| 65 mm | R 2 ½” | SS | 320.657250.120 | |
| 65 mm | R 3” | Ms | 320.657300.130 | |
| 65 mm | R 3” | SS | 320.657300.120 | |
| 3” | 75 mm | R 3” | Ss | 320.758300.120 |
| 75 mm | R 3” | Ms | 320.758300.130 | |
| 75 mm | R 3” | PP | 320.758300.150 | |
| 4” | 100 mm | R 4” | Ms | 320.108400.130 |
| 100 mm | R 4” | SS | 320.108400.120 | |
Ms = Brass
Ss = Stainless steel
Al = Aluminium
Thread: R = BSP
As standard, the couplings are made of brass. Other dimensions and materials are also available.

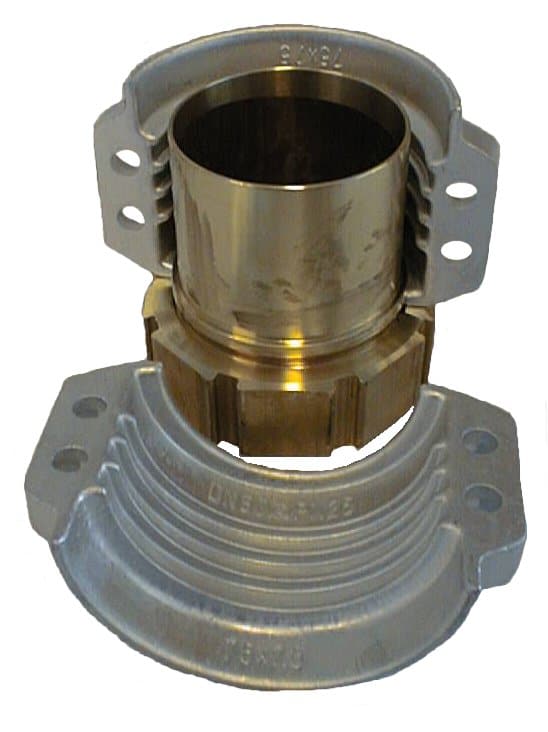

Hose nozzles with clamping jaws and union nut with inside thread |
||||
| Dimension | Hose | Thread | Material | Ordering no. |
| ¾” | 19 mm | R ¾” | SS | 120.196075.122 |
| 1” | 25 mm | R 1” | SS | 120.256100.122 |
| 25 mm | 1” NPT | Ms | 120.256100.733 | |
| 25 mm | R 1½” | SS | 120.256150.122 | |
| 25 mm | R 1½” | Ms | 120.256150.133 | |
| 1 ¼” | 32 mm | R 1 ½” | Ms | 120.326150.133 |
| 32 mm | R 1½” | SS | 120.326150.122 | |
| 32 mm | 1 ¾” ACME | Ms | 120.326175.013 | |
| 32 mm | R 2” | SS | 120.326200.122 | |
| 32 mm | 2 ¼” ACME | Ms | 120.326225.013 | |
| 1 3/8” | 35 mm | R 1 ½” | Ms | 120.356150.133 |
| 35 mm | R 2” | Ms | 120.356200.133 | |
| 1 ½” | 38 mm | R 1 ½” | Ms | 120.387150.133 |
| 38 mm | R 1 ½” | SS | 120.387150.122 | |
| 38 mm | R 2” | Ms | 120.387200.133 | |
| 38 mm | R 2” | SS | 120.387200.122 | |
| DN 40 | 40 mm | R 1 ½” | Ms | 120.407150.133 |
| 40 mm | R 2” | Ms | 120.407200.133 | |
| 2” | 50 mm | R 2” | Ss | 120.508200.122 |
| 50 mm | R 2” | Ms | 120.508200.133 | |
| 50 mm | 2” NPT | Ms | 120.508200.310 | |
| 50 mm | R 2 ½” | Ms | 120.508250.133 | |
| 50 mm | R 2 ½” | SS | 120.508250.122 | |
| 50 mm | 3 ¾” ACME | Ms | 120.508325.013 | |
| 2 ½” | 65 mm | R 2 ½” | Ms | 120.657250.133 |
| 65 mm | R 2½” | SS | 120.657250.122 | |
| 65 mm | R 3” | Ms | 120.657300.133 | |
| 3” | 75 mm | R 3” | Ss | 120.758300.122 |
| 75 mm | R 3” | Ms | 120.758300.133 | |
| 4” | 100 mm | R 4” | Ms | 120.108400.133 |
| 100 mm | R 4” | SS | 120.108400.122 | |
Ms = Brass
Ss = Stainless steel
Al = Aluminium
Thread: R = BSP
As standard, the couplings are made of brass. Other dimensions and materials are also available.
